Sydney Tools, AMX, Clark Rubber, Autobarn & TJM Ebbw Vale QLD

Highlights

  • Address: 74 Brisbane Road, Ebbw Vale, Queensland
  • Developer: DJS Properties (QLD)
  • Tenant: Sydney Tools, AMX Superstores, Clark Rubber, Autobarn, TJM
  • Builder: Niclin
  • Warehouse:5,800m²
  • Offices:
  • Pavement:7,400m²
  • Designed: 2023
  • Built: 2024
  • Steelwork Rate: 7.4kg/m²
  • Purlin/Girt Rate: 6.4kg/m²

Structural Features

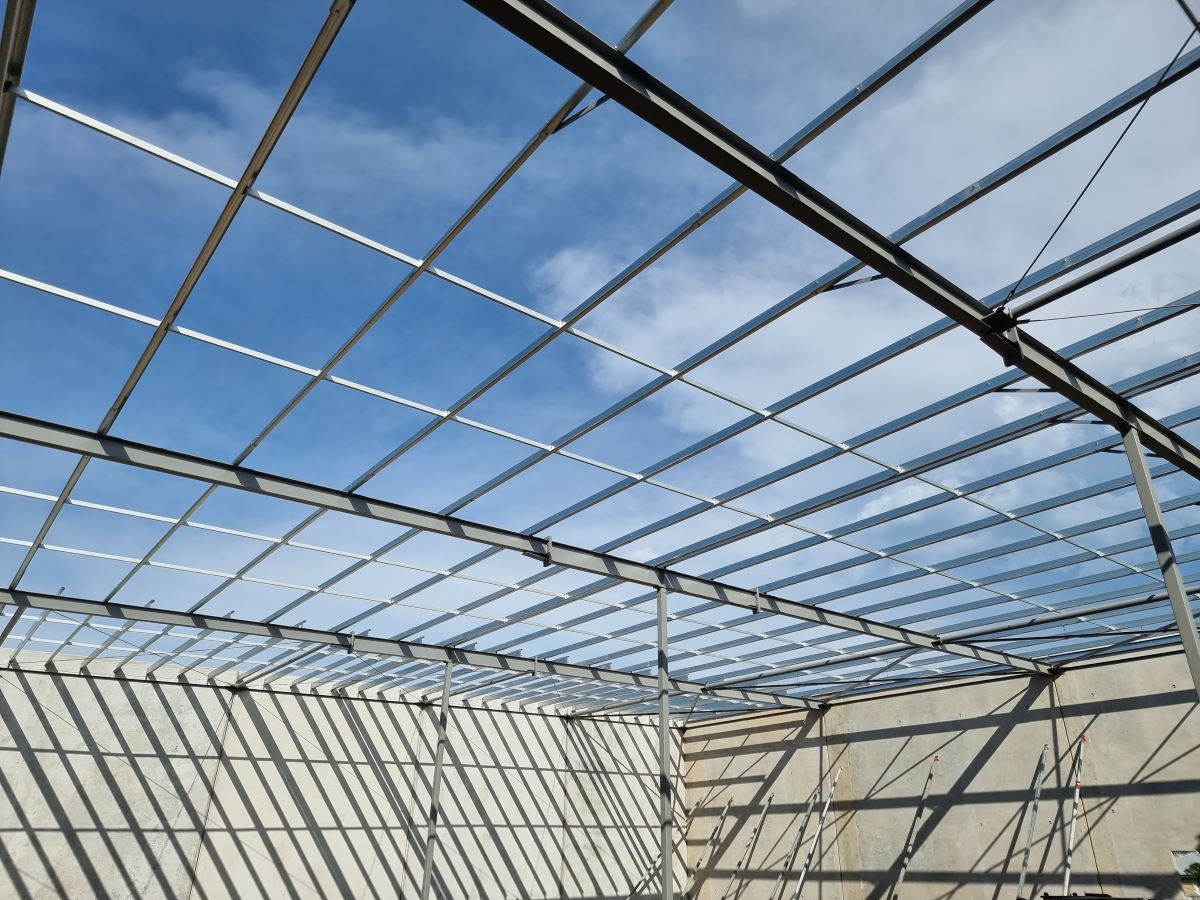

This project consisted of a 5,800sqm full height concrete panel building which was divided into 5 separable tenancies via concrete panel intertenancy walls. The rear driveway of the building was suspended over an overland flow easement and was supported on 450dia concrete columns, concrete panel walls and high-level footings. The 275 thick rear concrete panel wall was also retaining up to 4m in locations with the stepped FFL of each tenancy and was propped during construction before being tied into the building slab on ground in the permanent case. High energy impact compaction (HEIC) was used to compact the up to 3m of uncontrolled fill across the site to ensure a high level footing solution was still achievable.
