Cactus Wellhead Brendale QLD
Highlights
- Address: 25 Johnstone Rd, Brendale, Queensland
- Developer: DJS Properties (QLD)
- Tenant: Cactus Wellhead
- Builder: Niclin
- Warehouse 1:4,000m²
- Awning:1,360m²
- Offices: 400m²
- Pavement:5,590m²
- Designed: 2023
- Built: 2024
- Steelwork Rate: 17.3kg/m²
- Purlin/Girt Rate: 4.7kg/m²
Structural Features

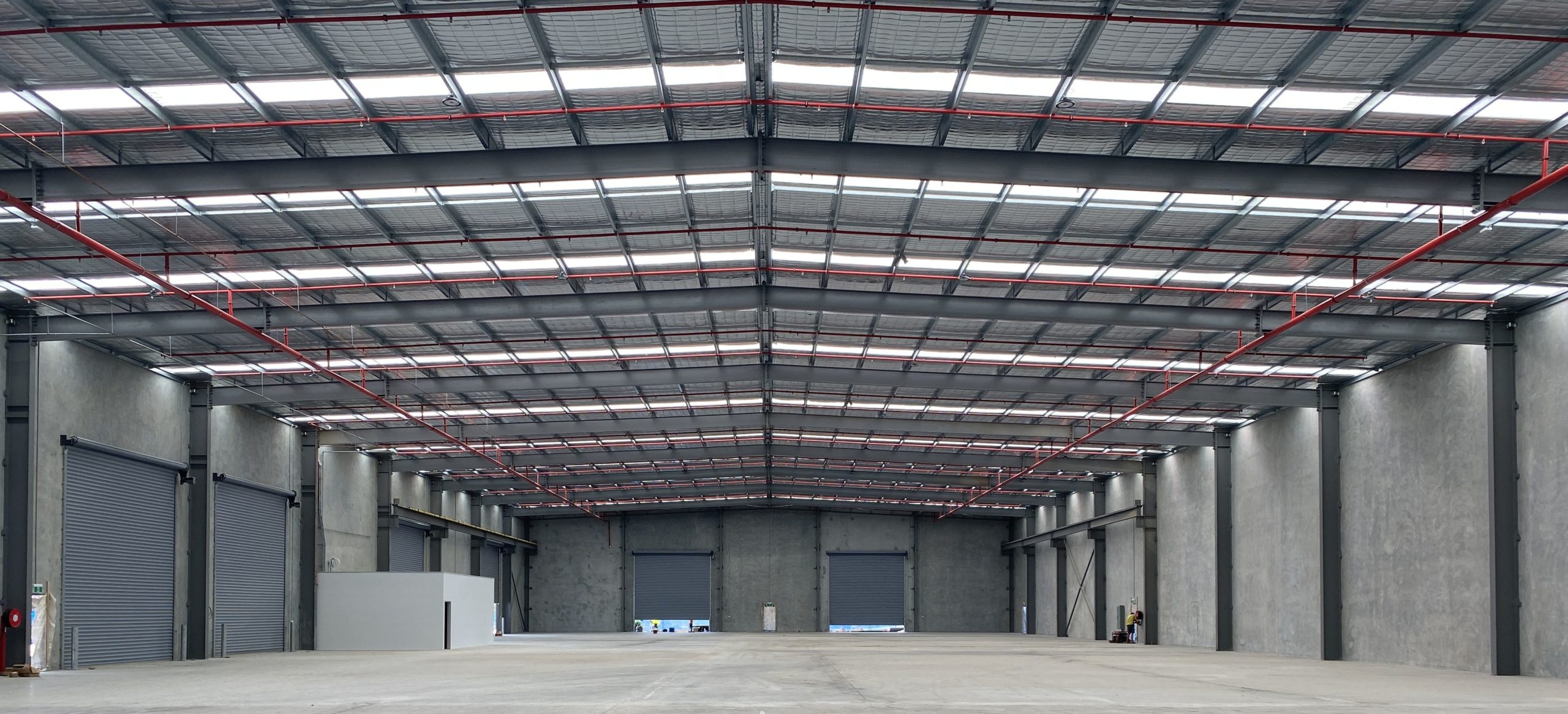

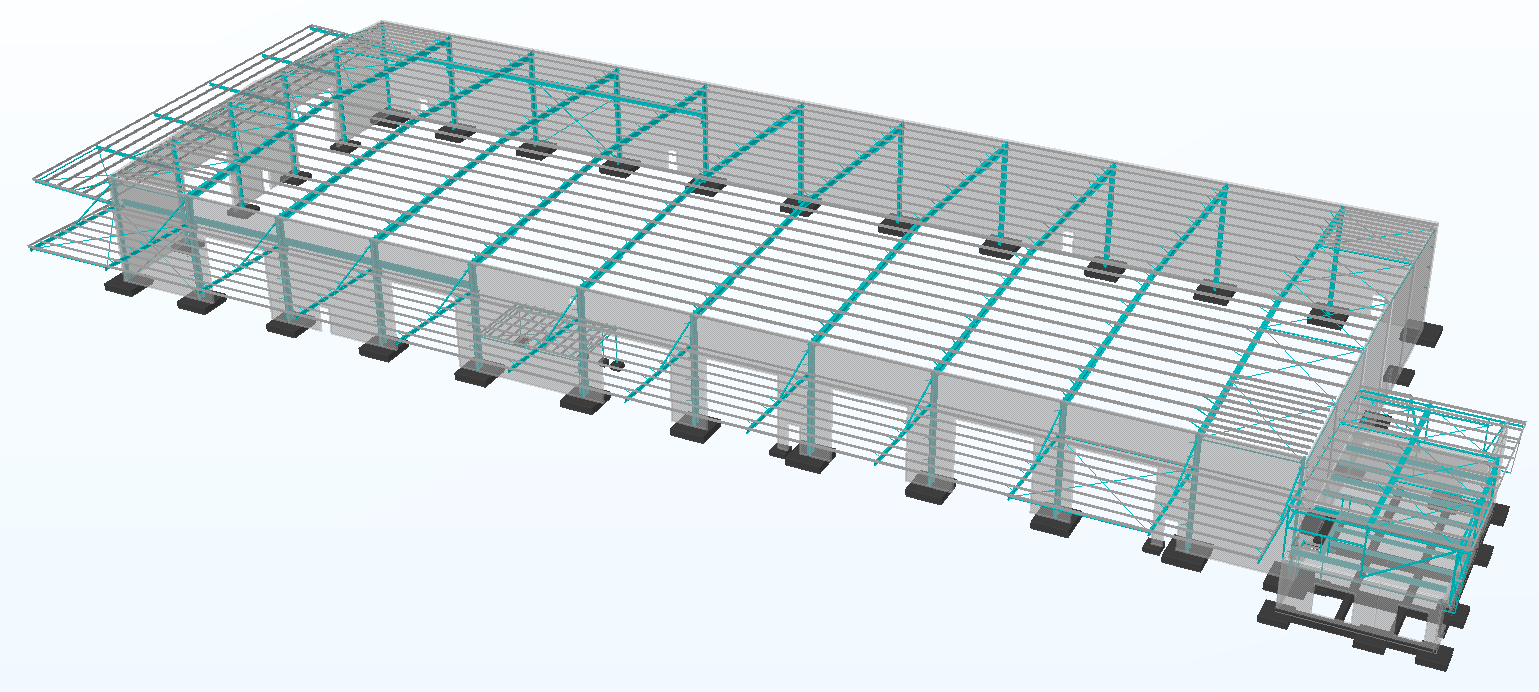

This project features full height tilt panels (35t, 150mm thick, 9.8m high), clear span portal frames (39m wide), and a 5t gantry crane. The site is very sensitive to settlement and required improvement using HEIC (high energy impact compaction). The gantry crane covers approximately 30% of the warehouse, with the remaining steel warehouse area future proofed so the crane can extend to 100% of the warehouse.
