Speculative Park Ridge QLD

Highlights

  • Address: Mapletree Drive, Park Ridge, Queensland
  • Developer: Mapletree
  • Tenant: Speculative
  • Builder: Vaughan Constructions
  • Warehouse:23,418m²
  • Awning:3,575m²
  • Warehouse 2:23,412m²
  • Awning 2:3,575m²
  • Offices: 1,326m²
  • Pavement:20,876m²
  • Designed: 2024
  • Built: 2024
  • Steelwork Rate: 14.28kg/m²
  • Purlin/Girt Rate: 6.32kg/m²

Structural Features

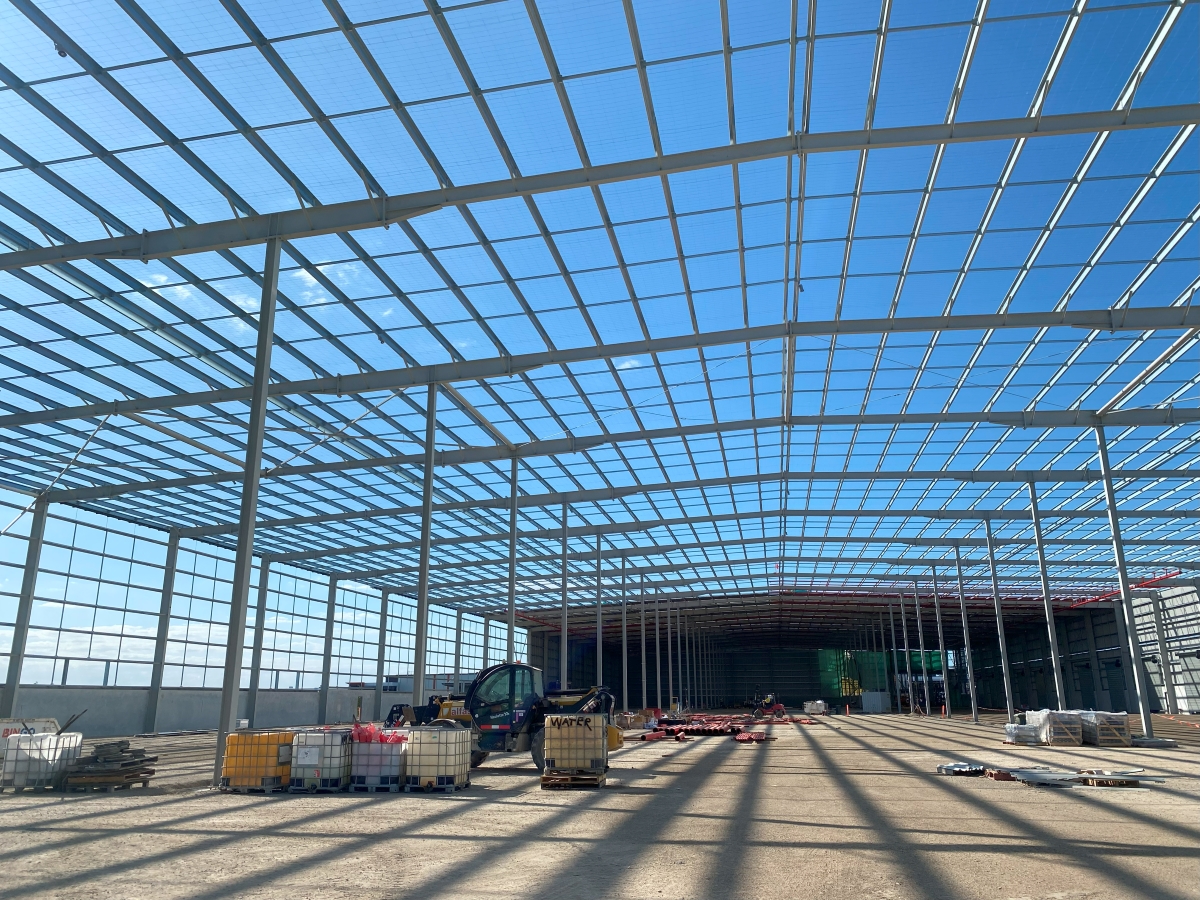

This project consists of 2 warehouses and 4 offices within the two main structures. The awning is a 15m cantilever. The portal frames have been designed for full solar coverage excluding the canopy. The warehouse slabs are 165-170 thick fibre reinforced concrete and are up to 1000m2 pours with armoured dowel joints and are designed for 7-8 tonne racking loads. The suspended office slabs are conventionally reinforced flat plate slabs.
